Download RST Decoder Pro App V. 3.0.0
Apple AppStore - Google Play
RST Decoder Pro App V. 3.0.0
by koji kamogawa
This is an App that decodes Morse code input from the microphone. I recommend that you try the basic functions and usage with the free version before purchasing. It is a Morse practice App that you - More Info...

Available Since: 2020-06-30
Developer: koji kamogawa
Seller: koji kamogawa
Price: 1.99 USD
Current version: 3.0.0
Last Updated: 2026-01-23

Ratings: 5 out of 5 stars.
Based on 1 reviews. (Rate/Review)
Genre: Education
Filesize: 1.37MB
IOS Bundle ID: com.hoge.RSTDecoderPro
Age Rating: 4+
Languages: EN, JA

Videos: RST Decoder Pro App Videos

This is an App that decodes Morse code input from the microphone.

I recommend that you try the basic functions and usage with the free version before purchasing.

It is a Morse practice App that you can use to check if you are keying the correct code.
Signals with good S/N can be decoded correctly, but signals with bad S/N cannot be decoded correctly.
Also, the performance will be degraded for extremely slow or fast signals.
Usually about 5 to 10 characters are required for speed synchronization of Morse Code.
Adjust the input signal so that the peak value changes from level 6 to level 7.
Make fine adjustments to each parameter according to the reception status.

[Additional Functions]
-In addition to the decoder using BPF, a new decoder using FFT has been added so that it can be switched according to the usage.
-AFD (Auto Frequency Detector) function has been added to the decoder using BPF, and BPF can be set automatically by pressing the AFD button.
-The decoder using FFT automatically follows the strongest signal in the band by AFD (Auto Frequency Detector) and AGC (Auto Gain Control). You can also hold the AFD / AGC parameters by pressing the Lock button.
* There will be a time lag of about 1 to 2 seconds for AFD tracking.
* The Pro version also supports waterfall display.

[Control parameters]
1.Language select English and Japanese(KANA)
2.Audio Input Level
3.BPF ON/OFF
4.BPF of Center Frequency
5.BPF of Band Width
6.BPF of Shape
7.Notch ON/OFF
8.Notch of Center Frequency
9.CW Speed Control ON/OFF
10.CW Speed Control Low, Mid1, Mid2 or High
11.Delete All Decoded Text

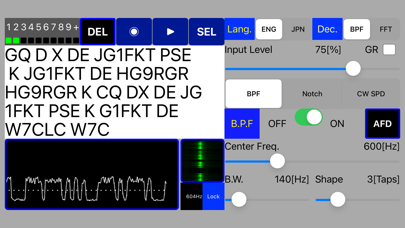

12.Realtime CW Signal Display
13.Input signal recording function.
14.Playback function from the file list.
15.Support the Garbage Data reduction function

[Note]
Since the signal after BPF is output to the audio output, it can also be used as an AF-CW filter.

[URL of this App(Free version) working example video]
The GUI is slightly different, but the basic functionality is the same.
https://youtu.be/Pwp7W4m-m34
